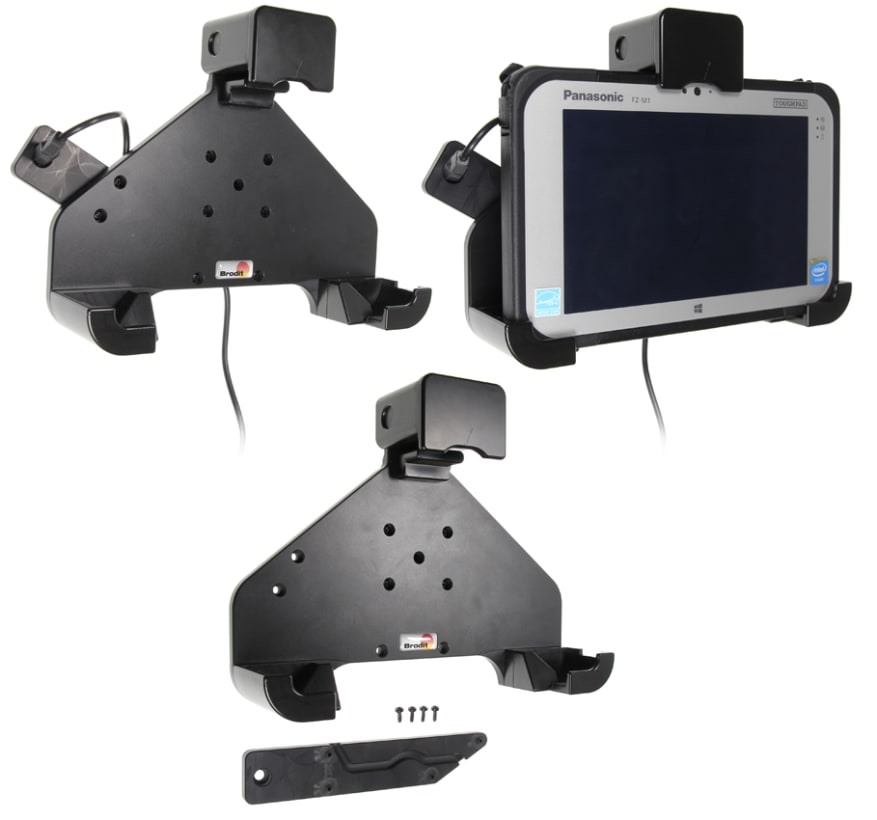

Holder for Cable Attachment, with Fly Lead. With spring stud locking. Fits unit both with and without handstrap.
This holder is to be used when you want to have your device extra securely in place and still have it easy accessable.
The holder is made of extra strong plastic and is equipped with a spring stud locking device. The holder is mounted onto a tilt swivel. This mean that you can adjust the angle in order to avoid light reflection on the screen. You can easily switch between portrait and landscape mode by turning the holder into desired position.
Tablets (Surfpads) should not be installed onto a car’s dashboard if they block the view or block key controls. ProClip (Brodit’s vehicle mounting bracket) is designed for installation of smaller devices like mobile phones and GPS devices, ProClip is not designed for large devices like tablets. In some vehicles the ProClip has an extra firm fit and can then be used also for installation of a tablet. If you want to place a tablet onto the car’s dashboard, each combination of tablet-car must be examined in detail by you in order to determine if such an installation is possible in the specific case. Consideration should be given to the position and how firmly the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.
An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on the car’s headrest, installed onto a Brodit headrest mount.
Please read all of the instructions and look at the pictures before attaching the holder.
1. Place the charging cable into the milled groove on the backplate; making sure there is enough cable left to attach the charging pin into the device. Place the backplate between on the back side of the holder, aligned with the holes. Screw the pieces together using the enclosed screws.
2. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw the holder onto the attaching plate. Tighten the screw so the holder is firmly in place, but still can be adjusted.
3. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forwards so it goes into position in the holder. Push the spring stud locking block downward.
To remove the device from the holder: Push the spring stud locking block upward. Pull the upper part of the device out from the holder and then lift the device up and out from the holder.
4. The holder is in place.
